Manifold Absolute Pressure and Intake Air Temperature Sensor: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

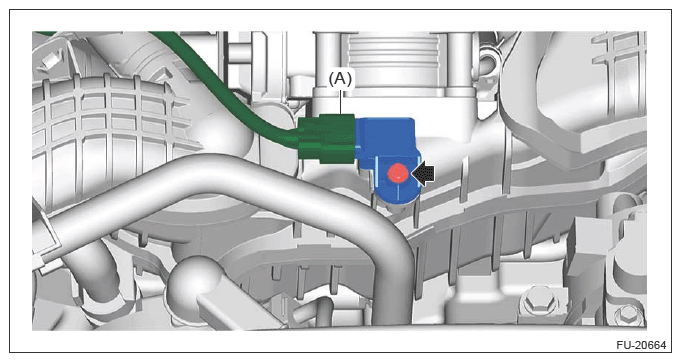

- Disconnect the connector (A) and remove the manifold absolute pressure and intake air temperature sensor.
