Mass Air Flows and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

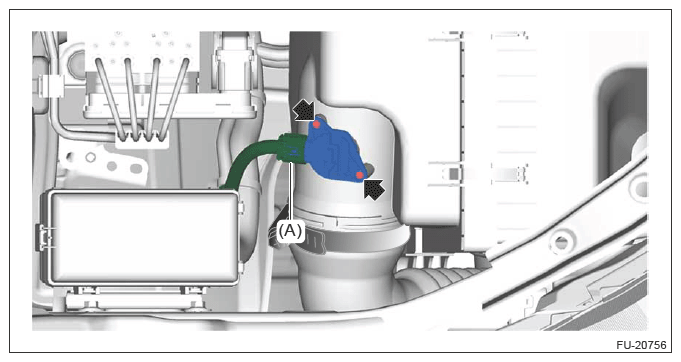

  2. Disconnect the connector (A) and remove the mass air flows and intake air temperature sensor.
    G13198310Courtesy of SUBARU OF AMERICA, INC.
