Driver's Airbag Module: Removal

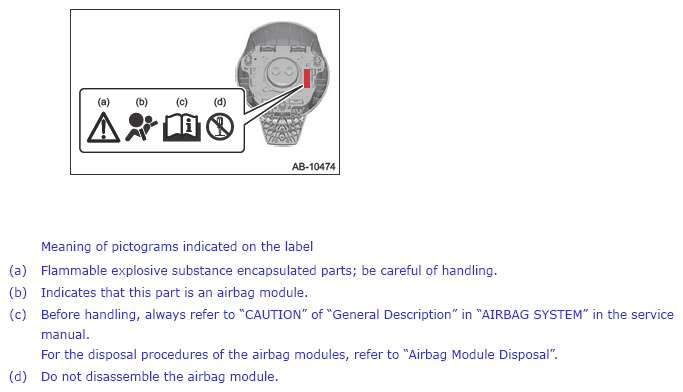

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .

1. Position the front wheels straight ahead.
2. Turn the ignition switch to OFF.
3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
4. Remove the driver's airbag module.
   1. Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).

      Courtesy of SUBARU OF AMERICA, INC.

   2. Disconnect the horn harness and airbag connector, and remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>DRIVER'S AIRBAG MODULE, CURTAIN AIRBAG MODULE & SECOND ROW SEAT BELT PRETENSIONER .

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
