General Description
›
Components With Torque Specifications
›
Passenger's Airbag Module
Passenger's Airbag Module

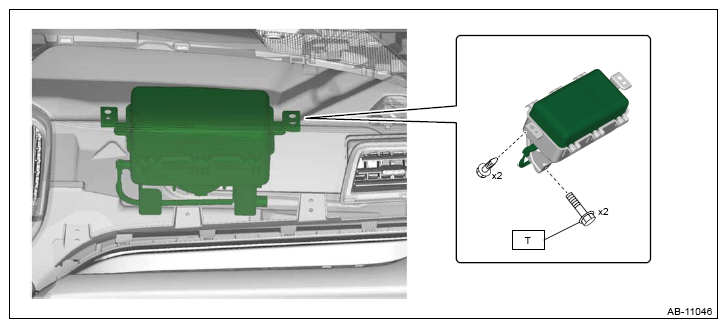

Fig 1: Passenger's Airbag Module Component
Courtesy of SUBARU OF AMERICA, INC.
Tightening: torque: N.m (kgf-m, ft-lb)
T:: 7.5 (0.8, 5.5)
