Side Impact Sensor (Front Door)

CAUTION:

The nuts cannot be removed from the side impact sensor (front door). Do not remove the mounting nuts.
Do not reuse the side impact sensor (front door) if it is once removed.

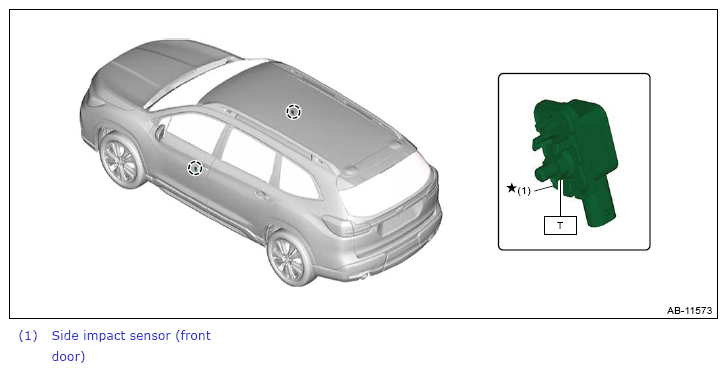

Fig 1: Side Impact Sensor (Front Door) Component

Courtesy of SUBARU OF AMERICA, INC.

Tightening: torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8,: 5.5)
