General Description
›
Components With Torque Specifications
›
Front Seat Belt
Front Seat Belt

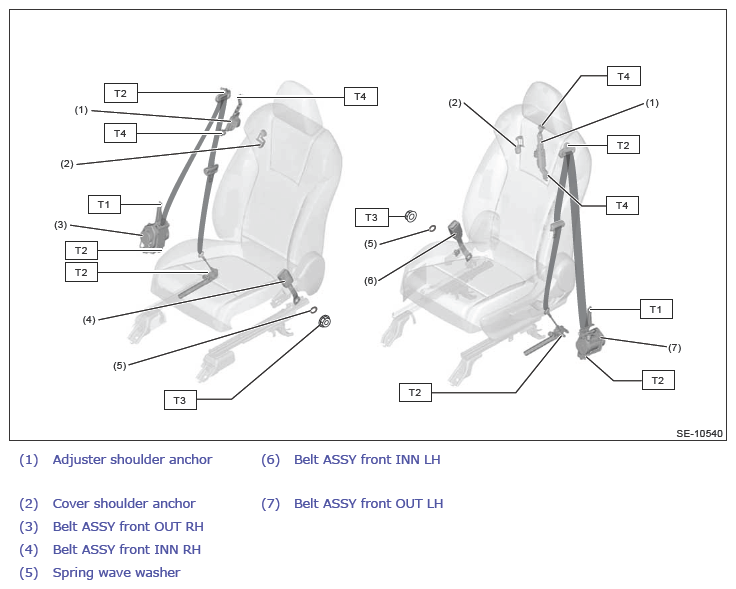

Fig 1: Exploded View Of Front Seat Belt Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
