CVTF Cooler (Air Cooling): Installation
- Install the CVTF cooler (air cool).
Tightening torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)

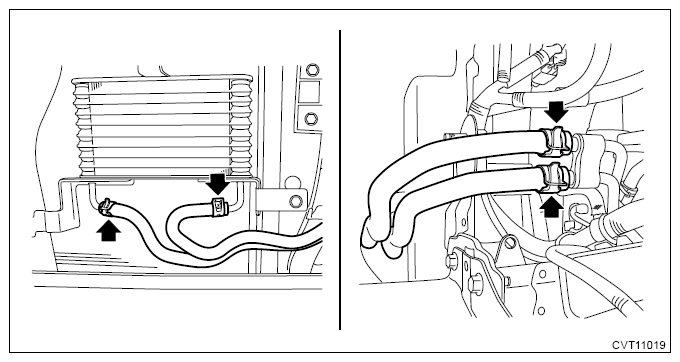

- Install a new CVTF cooler (air cool) inlet hose and a new CVTF cooler (air cool) outlet hose.
- Install the air guide LH.
- Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
