Drive Plate: Removal
- Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .

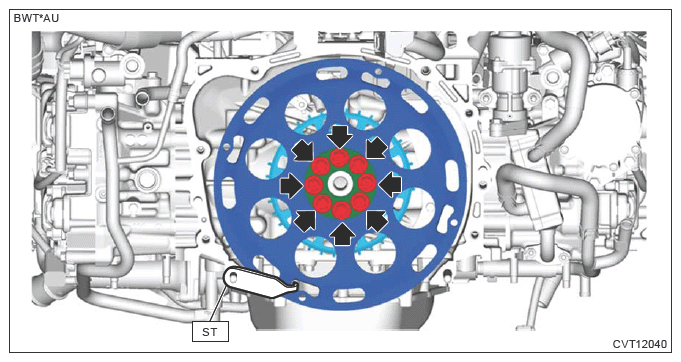

- Set the ST, and then remove the reinforcement drive plate, drive plate and crankshaft position sensor plate.
Preparation tool:
ST: CRANKSHAFT STOPPER (498497300)
