Rear Drive Shaft: Disassembly

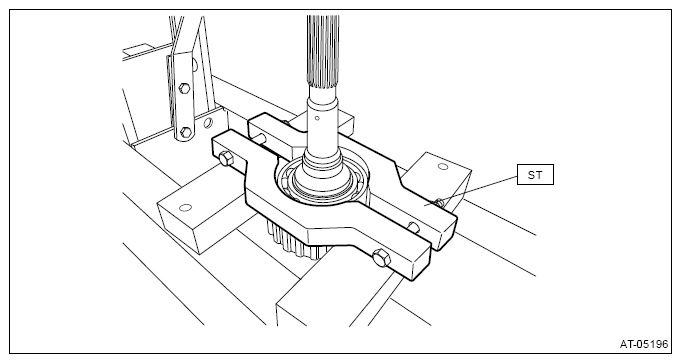

  1. Remove the ball bearing using the ST and a press.

    Preparation tool:

    ST: REMOVER (498077600)

    G13200126Courtesy of SUBARU OF AMERICA, INC.
