Select Lever And Select Cable

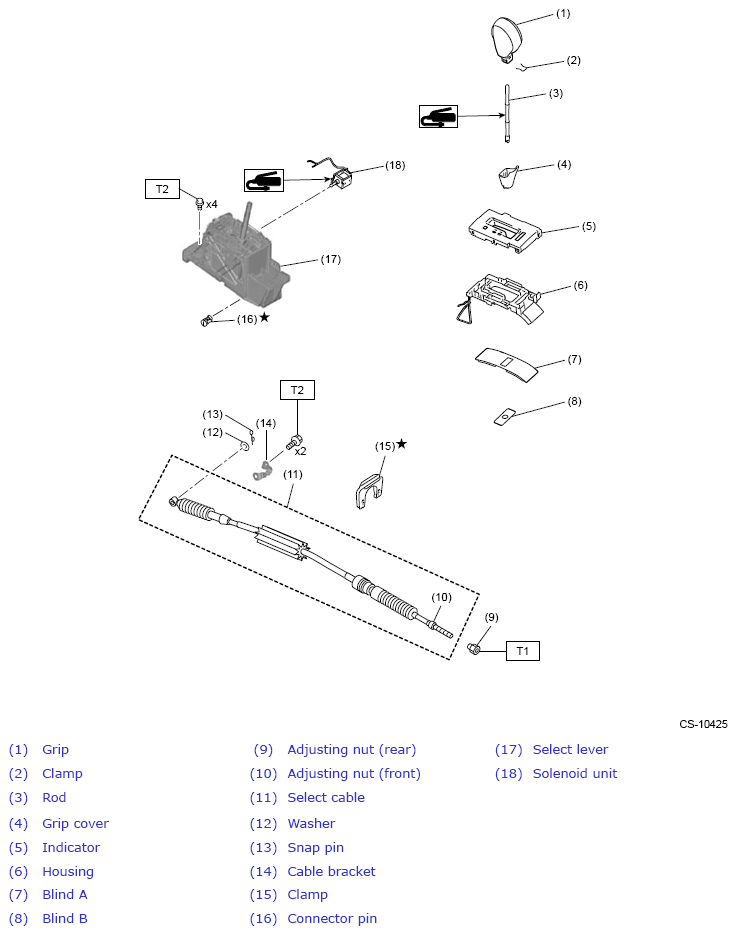

Fig 1: Exploded View Of Select Lever And Select Cable Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)
