Fuel Pump Control Unit: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the right side rear quarter trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

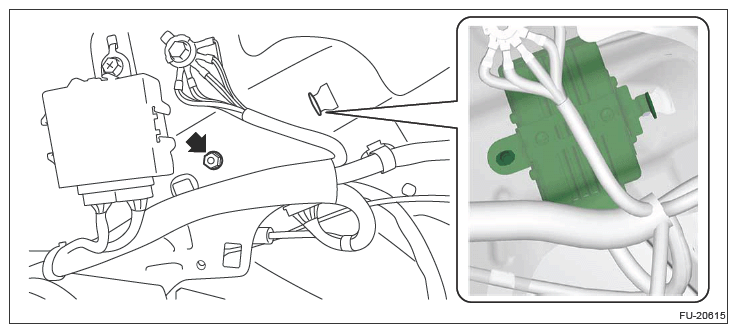

  3. Remove the fuel pump control unit.
    G13198335Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from fuel pump control unit.
    G10263649Courtesy of SUBARU OF AMERICA, INC.
