Restraints
›
Air Bag, SRS
›
Airbag System
›
General Description
›
Components With Torque Specifications
›
Airbag Control Module
Airbag Control Module
CAUTION:
Do not reuse mounting bolts and nuts.

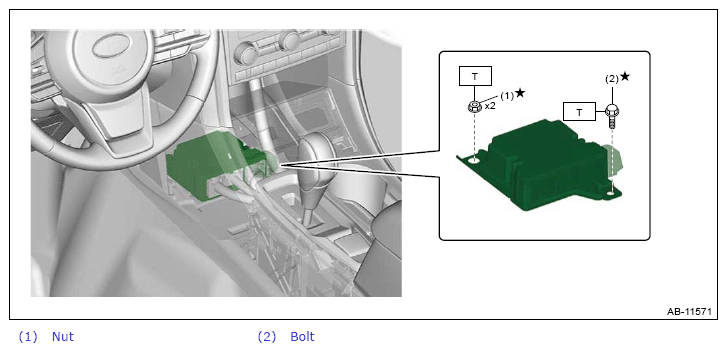

Fig 1: Airbag Control Module Component
Courtesy of SUBARU OF AMERICA, INC.
Tightening: torque: N.m (kgf-m, ft-lb)
T:: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
