General Description
›
Components With Torque Specifications
›

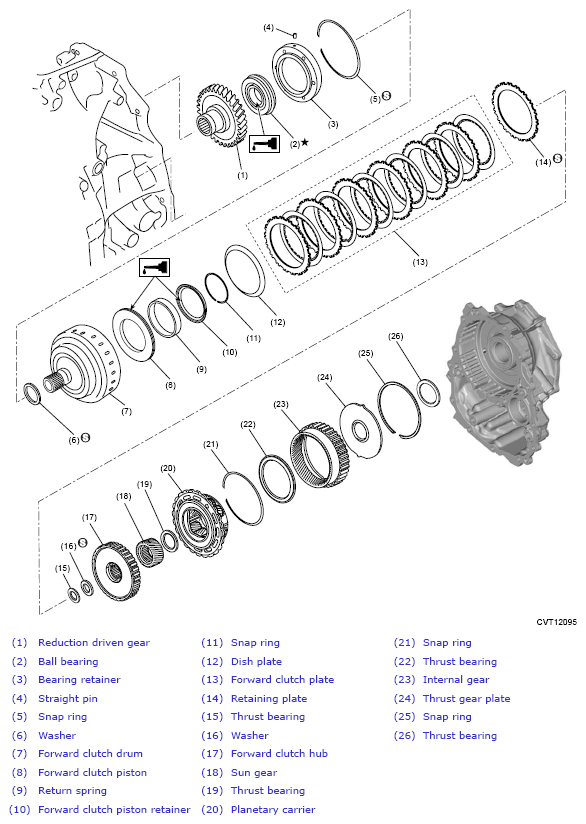

Forward Clutch And Reduction Driven Gear
Forward Clutch And Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
