Front Fog Light Bulb: Installation: Notes

CAUTION:

• Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

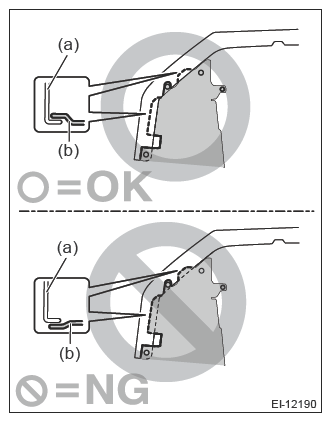

• Install the mud guard - front so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.
