Converter Case: Disassembly

1. Remove the drain plug (A) using TORX® bit T70.
2. Remove the overflow plug (B).

   Courtesy of SUBARU OF AMERICA, INC.

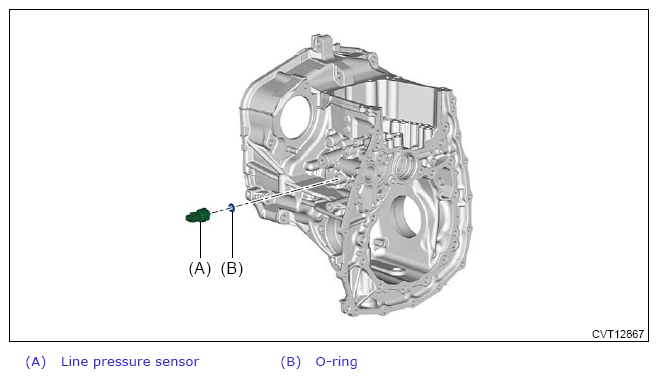

3. Remove the line pressure sensor and O-ring.

   Courtesy of SUBARU OF AMERICA, INC.

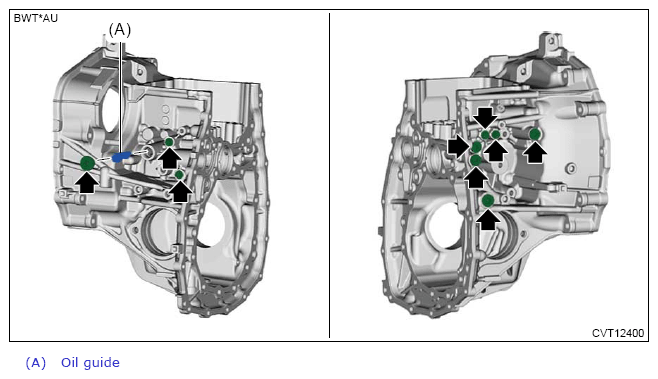

4. Remove the plugs and oil guide.

   Courtesy of SUBARU OF AMERICA, INC.

5. Remove the stud bolt.

Courtesy of SUBARU OF AMERICA, INC.
