Transmission Assembly: Removal

  1. Release the parking brake.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

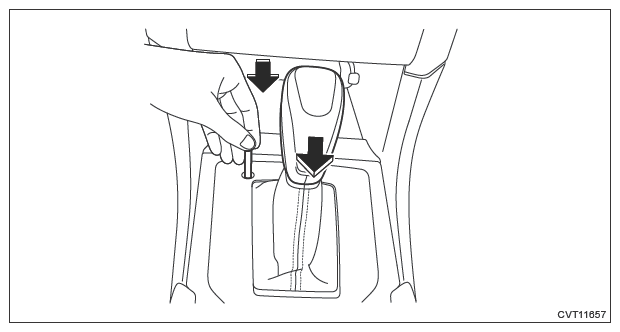

  3. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13233130Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION:

    Be careful not to pull out the PCV hose.

    G11252777Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the engine rear hanger.
    G11255514Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the transmission harness connector from the engine wiring harness.
    G11253156Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the engine wiring harness stay. (2.0 L model)
    1. Disconnect the engine ground.
      G11255520Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the engine wiring harness stay.
    G11255519Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the engine wiring harness stay. (2.5 L model)
    1. Remove the bolt (A) securing the engine ground and the harness case, and remove the clip (B).
    2. Remove the bolts securing the engine wiring harness stay, and remove the engine wiring harness stay.
    G13621579Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
  11. Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO (EXCEPT FOR HEV))>STARTER>REMOVAL .
  12. Separate the torque converter from drive plate. (2.0 L model)
    1. Disconnect the connector (A) and connector (B), and remove the clip (C) from the bracket.
    2. Disconnect the PCV hose (D) from the intake manifold assembly and the PCV valve, and then remove the PCV hose (D).
    3. Remove the plug (E) from the service hole.
      G11253164Courtesy of SUBARU OF AMERICA, INC.
    4. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to remove the bolts (6 places) securing the torque converter to the drive plate.
      G11253165Courtesy of SUBARU OF AMERICA, INC.
    5. Attach the ST to the converter case.

      Preparation tool:

      ST: STOPPER SET (498277200)

      G13600625Courtesy of SUBARU OF AMERICA, INC.
  13. Separate the torque converter from drive plate. (2.5 L model)
    1. Remove the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>PCV HOSE>REMOVAL>PCV HOSE NO. 1 .
    2. Disconnect the connector (A), and remove the plug (B) from the service hole.
      G13875957Courtesy of SUBARU OF AMERICA, INC.
    3. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to remove the bolts (4 places) securing the torque converter to the drive plate.
      G13603122Courtesy of SUBARU OF AMERICA, INC.
    4. Attach the ST to the converter case.

    Preparation tool:

    ST: STOPPER SET (498277200)

    G13600625Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the bolts which hold the upper side of the transmission.
    G13600632Courtesy of SUBARU OF AMERICA, INC.
  15. Set the ST1 and ST2.

    Preparation tool:

    ST1: ENGINE SUPPORT BRACKET (41099AA012)

    ST2: ENGINE SUPPORT (41099AA020)

    G11255524Courtesy of SUBARU OF AMERICA, INC.
  16. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>CVTF>REPLACEMENT .
  17. Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>DIFFERENTIAL GEAR OIL>REPLACEMENT .
  18. Remove the front drive shaft. Ref. to DRIVE SHAFT SYSTEM>FRONT DRIVE SHAFT>REMOVAL>CROSSTREK MODEL .
  19. Remove the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>PROPELLER SHAFT>REMOVAL .
  20. Remove the exhaust hanger bracket.
    G11255529Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the CVTF cooler (with warmer feature).
    NOTE:

    Prepare the container for draining of engine oil.

    1. Remove the CVTF cooler (with warmer feature), and move it aside so that it does not interfere with the operation.
      NOTE:

      Suspend from the vehicle body with rope, etc.

      G13935832Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-rings.
    G13603116Courtesy of SUBARU OF AMERICA, INC.
  22. Disconnect the select cable.
    CAUTION:

    Do not apply excessive load while holding the part (a).

    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the bolts and nuts which hold the lower side of transmission.
    G13600620Courtesy of SUBARU OF AMERICA, INC.
  24. Set the transmission jack under the transmission.
    CAUTION:

    Make sure that the support plates of transmission jack do not touch the oil pan.

  25. Remove the transmission rear crossmember. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  26. While lowering the transmission jack gradually, retract the ST (ENGINE SUPPORT), and then tilt the engine rearward.
  27. Remove the transmission body.
    NOTE: Adjust the position and angle of the transmission jack so that the engine and the transmission are aligned straight.
  28. Remove the rear cushion rubber. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  29. Remove the transmission cover (rear).
    G13603130Courtesy of SUBARU OF AMERICA, INC.
  30. When overhauling the transmission body, refer to "Preparation for overhaul". Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSSTREK)>PREPARATION FOR OVERHAUL>PROCEDURE>BEFORE OVERHAUL .
