Transmission Case: Disassembly

  1. Remove the oil stopper plate.
    G13936185Courtesy of SUBARU OF AMERICA, INC.

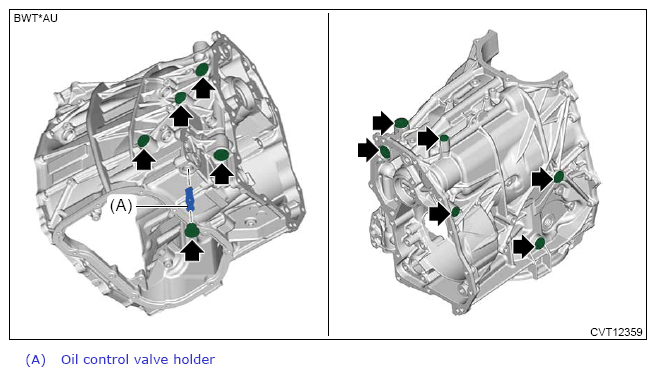

  2. Remove each plug and oil control valve holder.
    G13936186Courtesy of SUBARU OF AMERICA, INC.

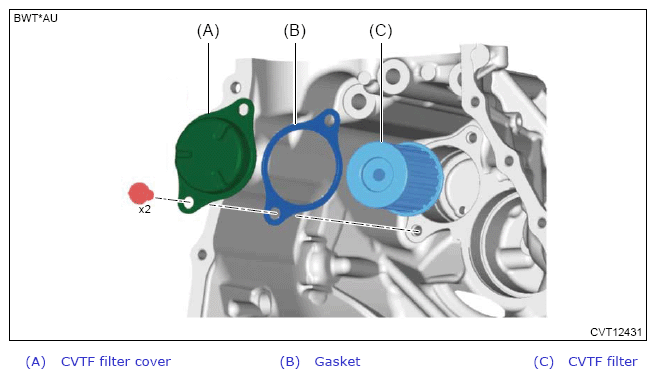

  3. Remove the CVTF filter cover, gasket and CVTF filter.
    G13936187Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the roller bearing using the ST1 and ST2.
    1. Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G13936188Courtesy of SUBARU OF AMERICA, INC.

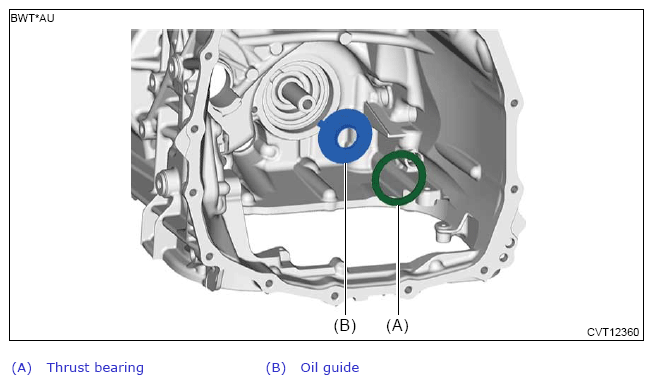

    2. Remove the thrust bearing and oil guide.
G13936189Courtesy of SUBARU OF AMERICA, INC.
