Entertainment System: Camera: Removal: Front

NOTE: Provided for Crosstrek model (except for hybrid).
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  3. Remove the front view monitor camera.
    CAUTION: Do not drop or apply any impact to the front view monitor camera because it is a precision equipment.

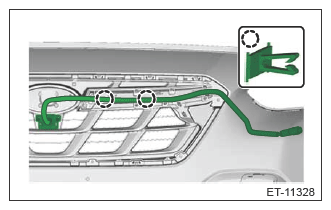

    1. Remove the cable clamps.
      G13938733Courtesy of SUBARU OF AMERICA, INC.

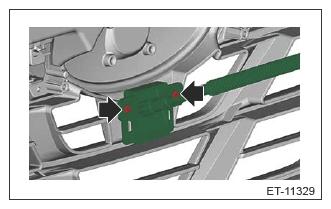

    2. Remove the screws and remove the front view monitor camera.
      G13938734Courtesy of SUBARU OF AMERICA, INC.
