Instrumentation System (Diagnostics)
›
General Description
›
System Block Diagram
System Block Diagram

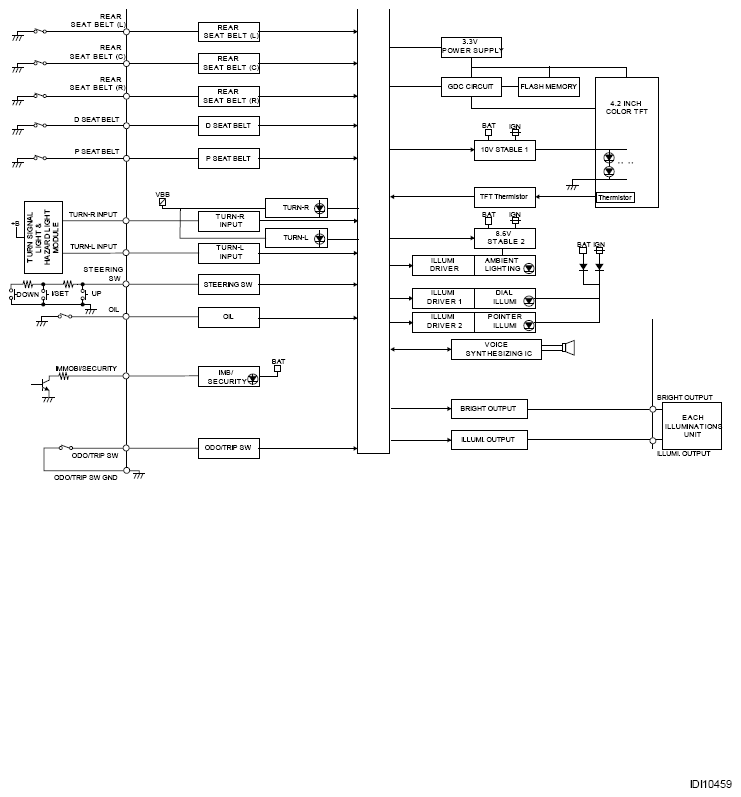

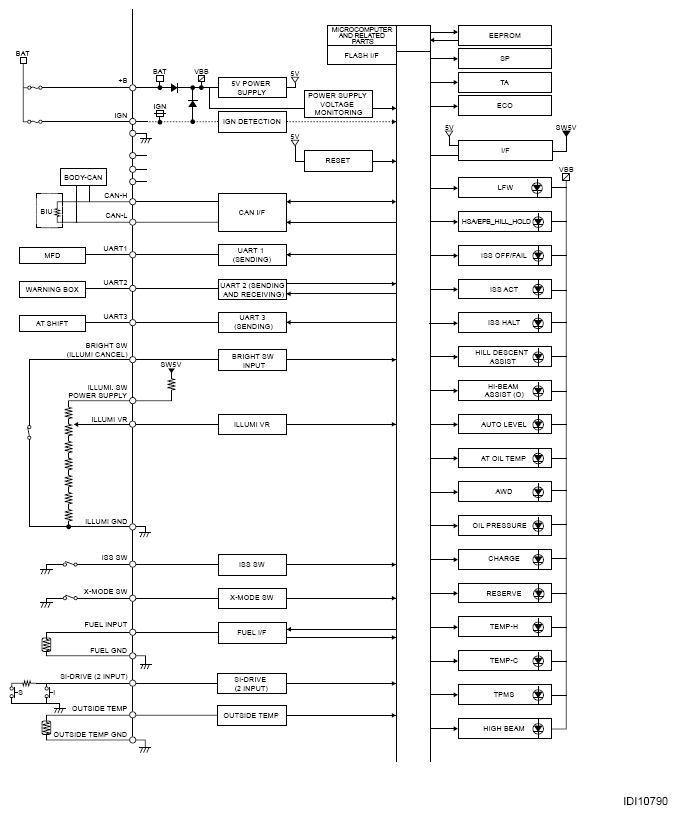

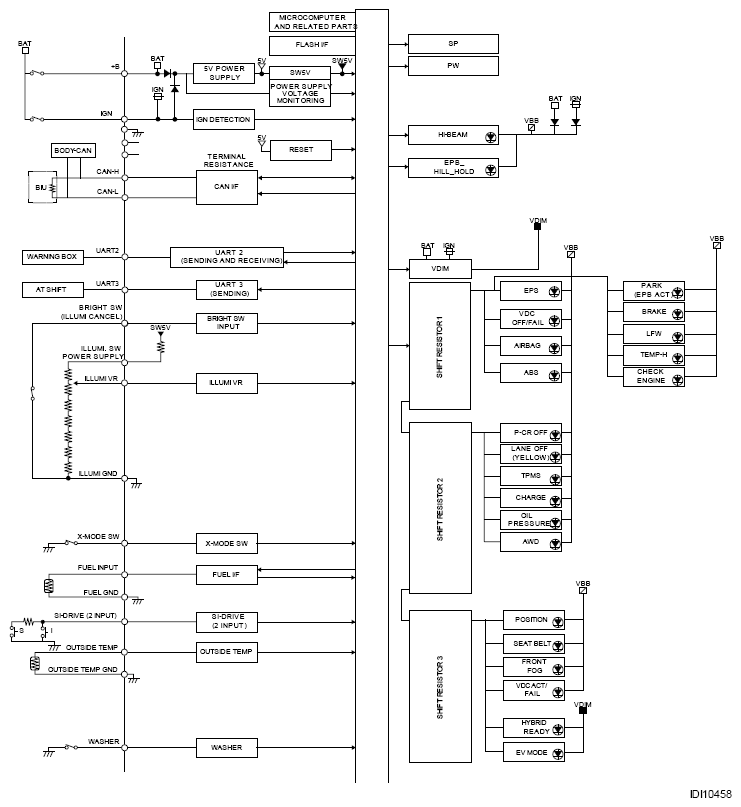

Color TFT meter (except for hybrid model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

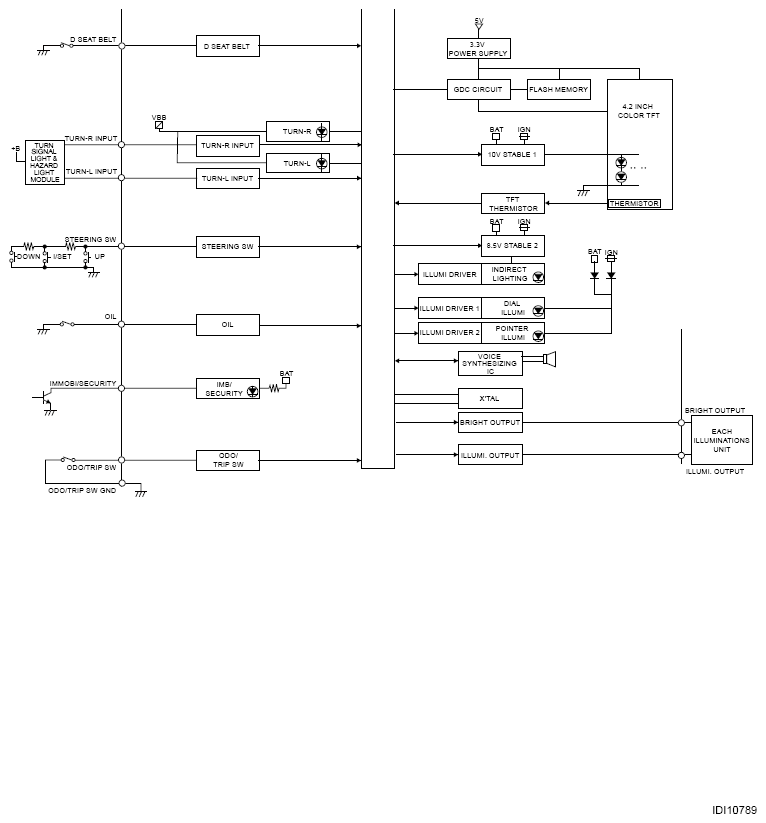

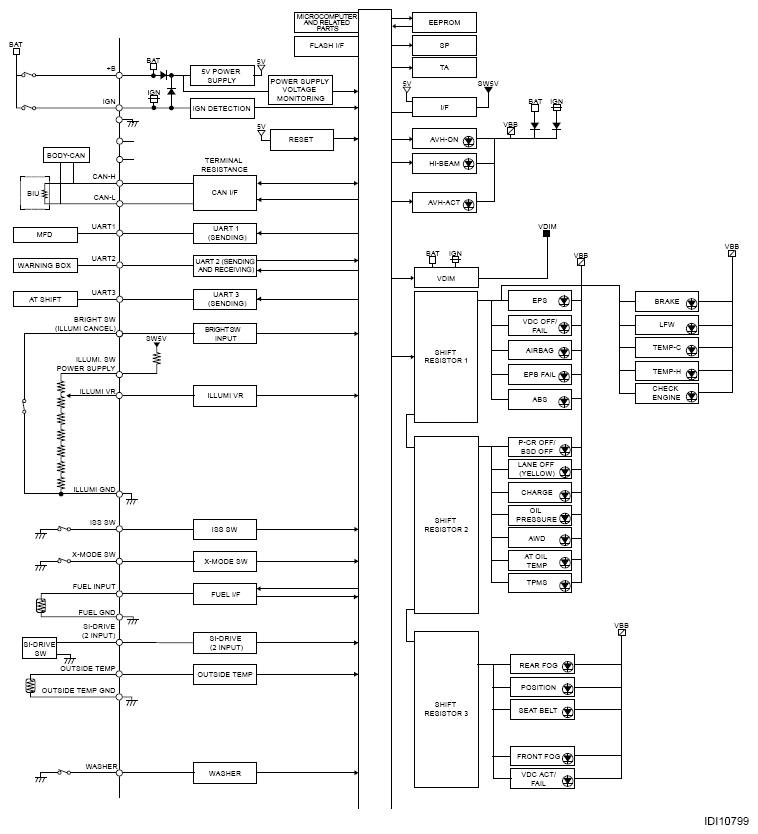

Color TFT meter (hybrid model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

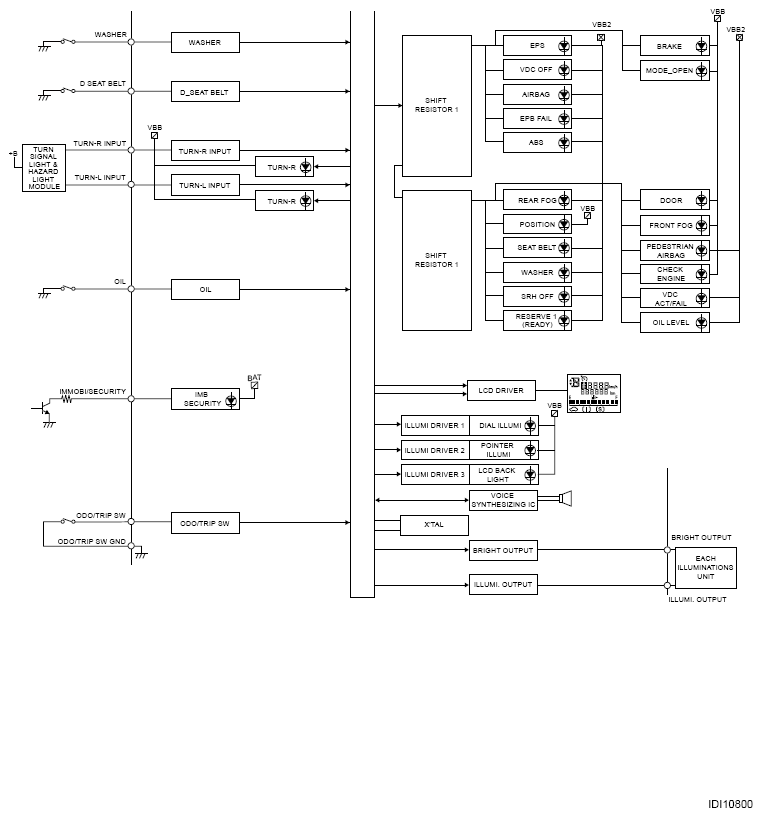

Normal meter
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
