Multi-Function Display (Diagnostics)
›
General Description
›
System Block Diagram
System Block Diagram

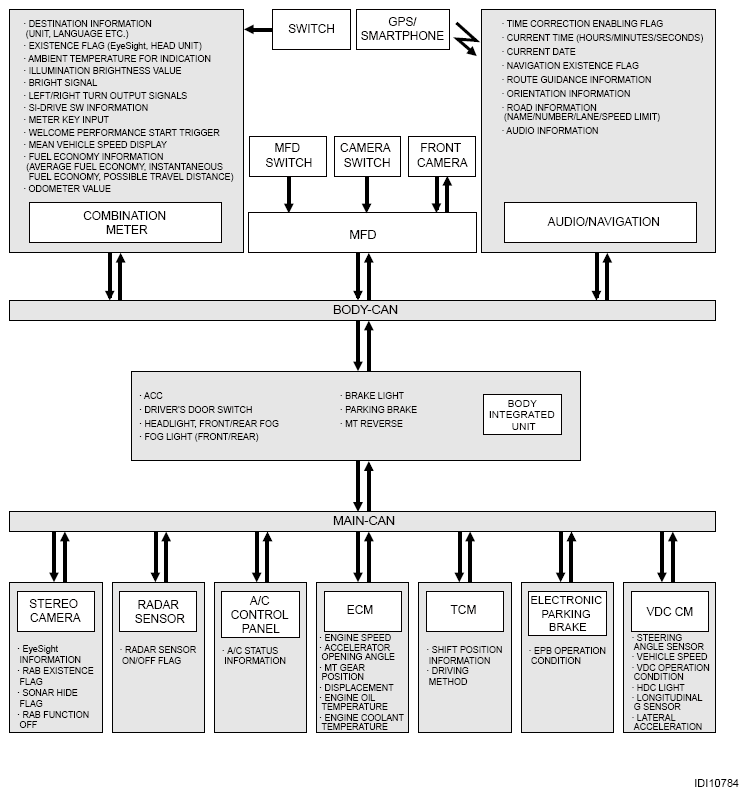

Except for hybrid model
Courtesy of SUBARU OF AMERICA, INC.

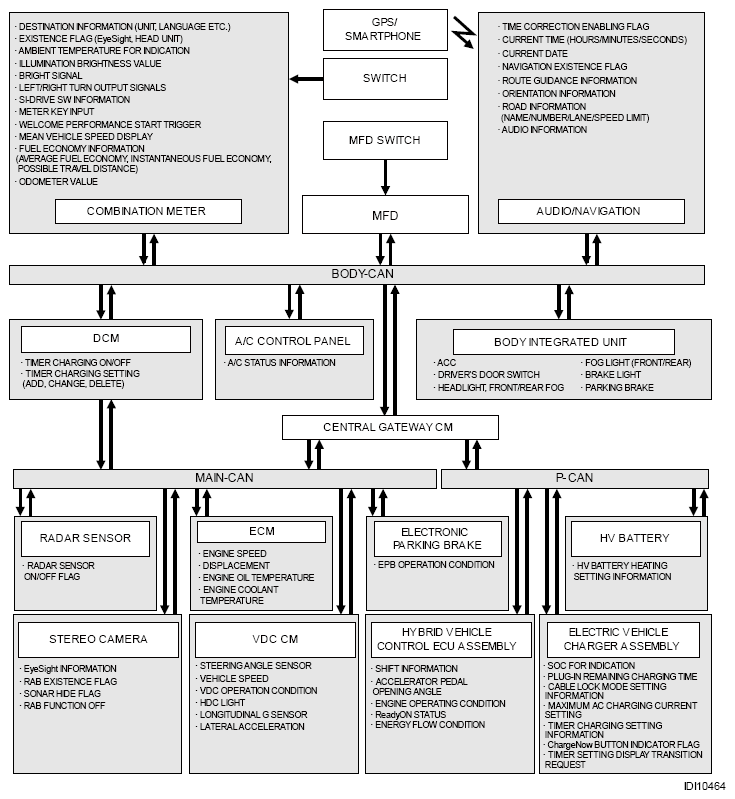

Hybrid model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
