Heat Shield Cover

Except for hybrid model

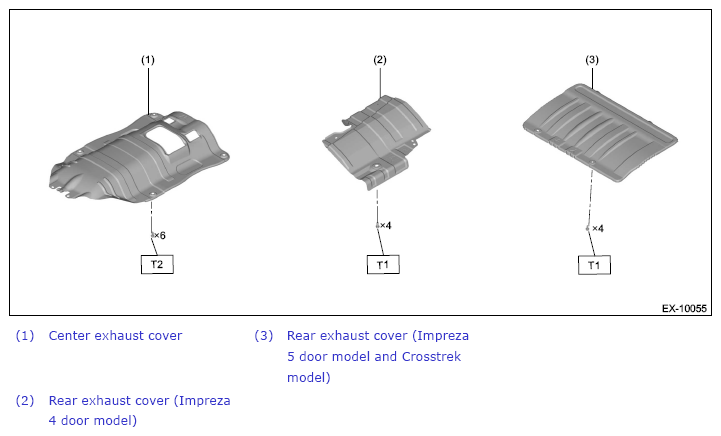

Fig 1: Heat Shield Cover Components Location (Except For Hybrid Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
Hybrid model

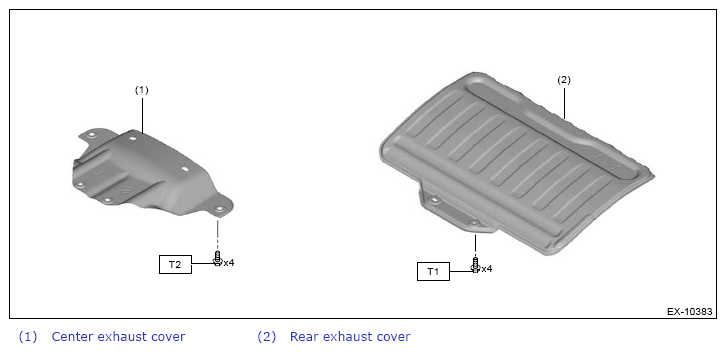

Fig 2: Heat Shield Cover Components Location (Hybrid Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
