Air Intake Boot: Installation

  1. Connect the PCV hose and set the air intake boot.
  2. Install the clips, and tighten the clamps.
    NOTE:

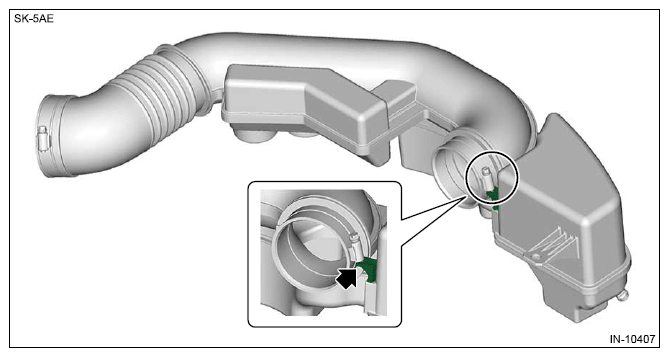

    • Align the clamp threaded portion with the stopper of the air intake boot. (2.0 L model)
      G13875850Courtesy of SUBARU OF AMERICA, INC.
    • Align the clamp hole with the protrusion of the air intake boot. (2.5 L model)
      G13590551Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    3 N.m (0.3 kgf-m, 2.2 ft-lb)
