Crossmember Support: Removal

  1. Lift up the vehicle.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the bolt, and remove the crossmember support - rear.
    G12400561Courtesy of SUBARU OF AMERICA, INC.

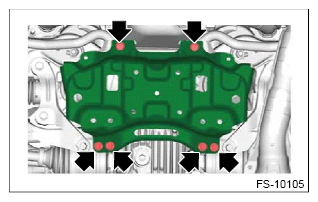

  4. Remove the bolt, and remove the crossmember support - front.
    G12400562Courtesy of SUBARU OF AMERICA, INC.
