Manifold Absolute Pressure Sensor: Removal

1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

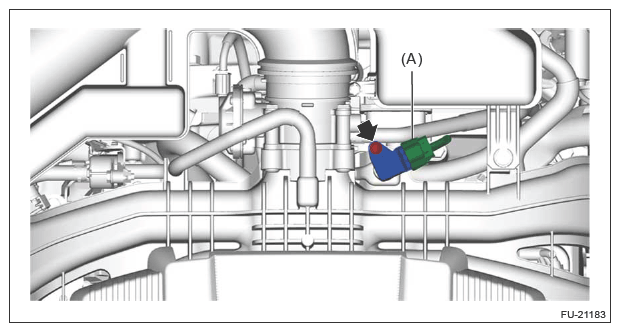

2. Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from intake manifold assembly.

Courtesy of SUBARU OF AMERICA, INC.
