Cylinder Block 1

2.0 L model

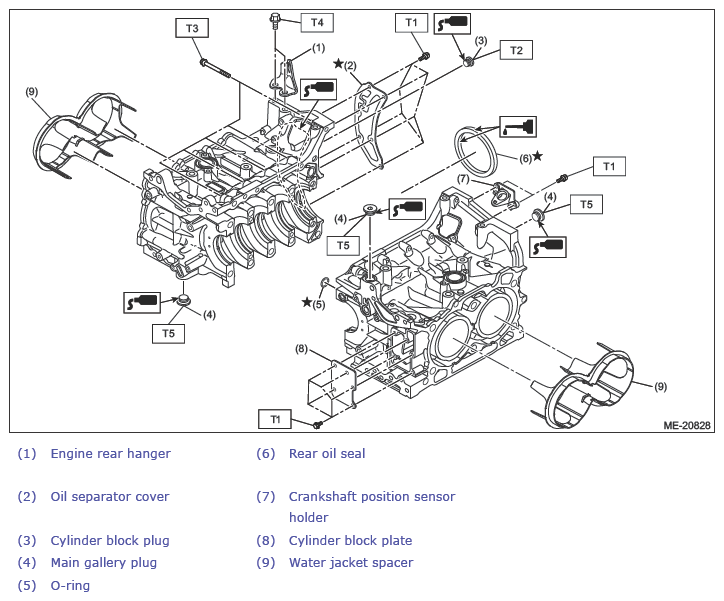

Fig 1: Cylinder Block 1 Components (2.0 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)

T4: 36 (3.7, 26.6)

TS: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
2.5 L model

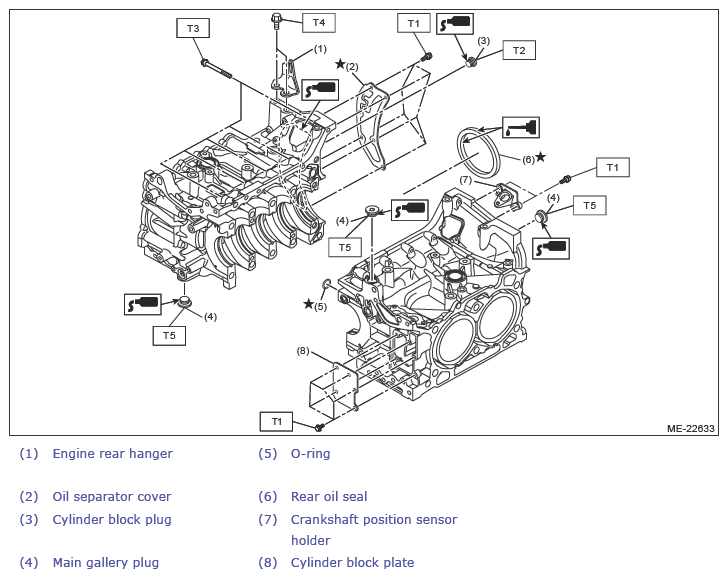

Fig 2: Cylinder Block 1 Components (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.mm (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)

T4: 36 (3.7, 26.6)

TS: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
