General Description
›
Components With Torque Specifications
›
Airbag Control Module
Airbag Control Module
CAUTION:
Do not reuse mounting bolts and nuts.

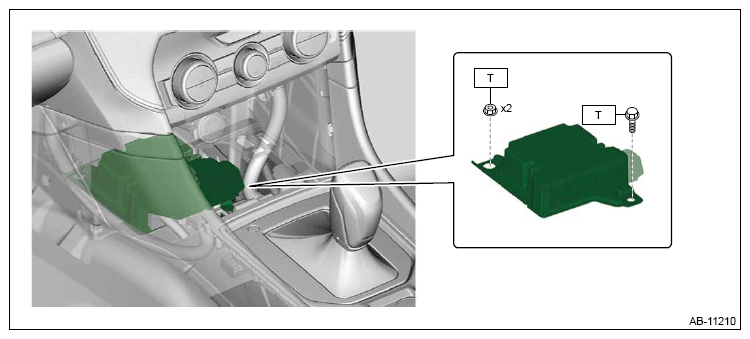

Fig 1: Airbag Control Module
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: Nm (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
