Entertainment System: Camera: Removal: Rear

Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Remove the trim panel assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
Remove the rearview camera assembly.
CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.

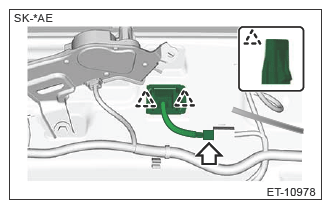

1. Disconnect the connector.
2. Disconnect the claws and then remove the rearview camera assembly.
Courtesy of SUBARU OF AMERICA, INC.
