Power Amplifier: Removal

NOTE: Remove the power amplifier assembly after sliding the front seat RH back and forth as necessary.
  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the power amplifier assembly.
    1. Remove the harness clip, and disconnect each connector.
    2. Remove the nut and remove the power amplifier assembly.

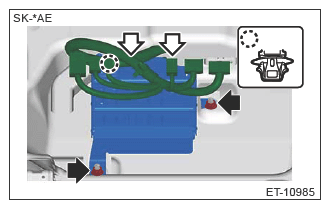

    G13226543Courtesy of SUBARU OF AMERICA, INC.
