Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Lift up the vehicle.
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

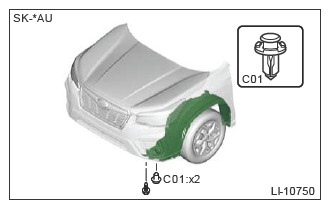

  4. Turn over the mud guard front.
    1. Remove the clip.
    2. Remove the screws, and turn over the mud guard front.
      G13226398Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the guides, then remove the fog light assembly front.

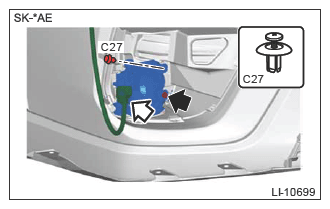

      • Except for LED type
        G13226399Courtesy of SUBARU OF AMERICA, INC.

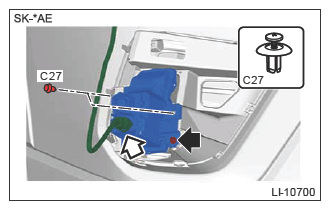

      • LED type
        G13226400Courtesy of SUBARU OF AMERICA, INC.
