Headlight Assembly: Installation

CAUTION:

Before installing the bumper face, match the claws on the bracket side front and bracket corner front with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.
Install it so that the under cover front end comes outside of the bumper face front.

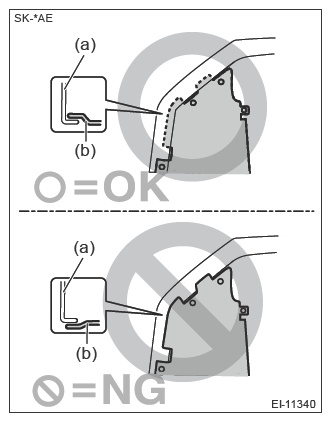

Install the mud guard front so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the light assembly head.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the bracket corner front.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the access buzzer. (When the light assembly head on the left side is removed)
Install the cover front fender UPR.
Install the bracket grille front.
Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION .
Install the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>INSTALLATION .
Check and adjust the clearance between the hood COMPL front and the light assembly head. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>ADJUSTMENT .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Adjust the headlight beam and fog light beam.
- Adjust the headlight beam. Ref. to LIGHTING SYSTEM>Headlight Assembly>ADJUSTMENT>HEADLIGHT BEAM ADJUSTMENT .
- Adjust the fog light beam. (Model with fog light) Ref. to LIGHTING SYSTEM>Front Fog Light Assembly>ADJUSTMENT>FOG LIGHT AIMING .
