Reflex Reflector: Removal

NOTE:
  • The procedure shows the RH side. For the LH side, refer to the RH side procedures.
  • For the LH side, perform the procedure after turning over the cover side LWR LH.

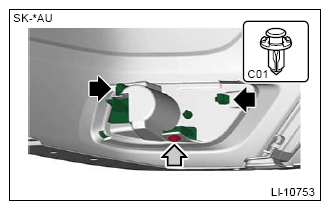

  1. Remove the reflex reflector assembly.
    1. Remove the clip.
    2. From behind the bumper face rear, release the claws and remove the reflex reflector assembly.
      G13226443Courtesy of SUBARU OF AMERICA, INC.
