Wiper Blade: Installation: Front
CAUTION:
After installation, confirm that the lock button is locked securely.

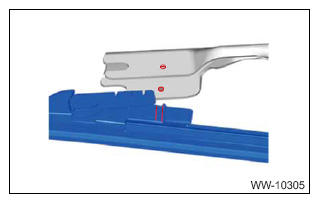

- Align the protrusion section of arm inner and the groove on the blade side.
 Courtesy of SUBARU OF AMERICA, INC.
|

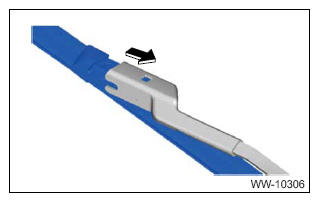

- Slide until the lock button is locked and install the blade assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
