Front Hood Lock Assembly: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

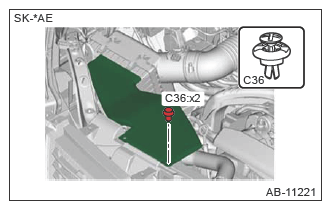

2. Remove the clips and remove the air intake duct (rear).

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the bracket grille front.
   1. Apply the protective tapes on the bracket grille front and the grille assembly front LWR.

      Courtesy of SUBARU OF AMERICA, INC.

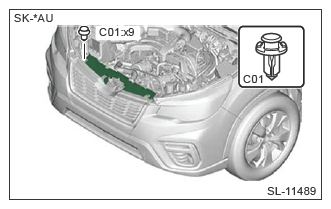

   2. Remove the clips, and remove the bracket grille front.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the lock assembly front hood.
   1. Disconnect the connector.

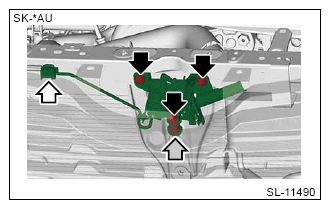

   2. Remove the bolts and clips, and remove the lock assembly front hood.

      Courtesy of SUBARU OF AMERICA, INC.

   3. Remove the cable assembly front hood from the guide.

Courtesy of SUBARU OF AMERICA, INC.
