Ignition Key Lock: Disassembly

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
2. Remove the immobilizer antenna assembly. Ref. to SECURITY AND LOCKS>Immobilizer Antenna>REMOVAL .

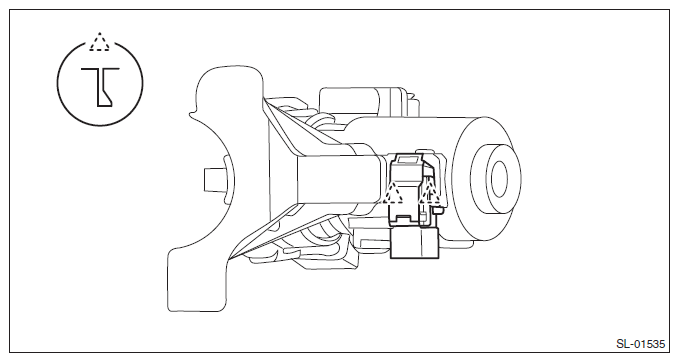

3. Remove the key warning switch.
   1. Release the claws, and pull the key warning switch downwards to remove.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the screws, and remove the key interlock module.

   Courtesy of SUBARU OF AMERICA, INC.

5. Remove the key lock assembly.

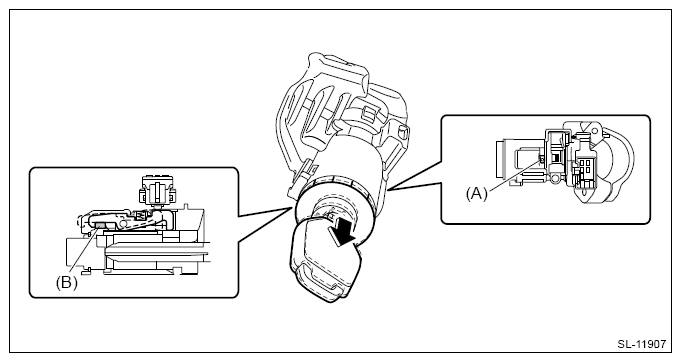

   1. Insert the key into the key lock assembly, and turn the key to the ACC position.
   2. Release the lock by inserting a flat tip screwdriver from the steering lock frame hole (A).
   3. Pull the key lock assembly until the key lock assembly claws touch the steering lock frame stopper (B).

      Courtesy of SUBARU OF AMERICA, INC.

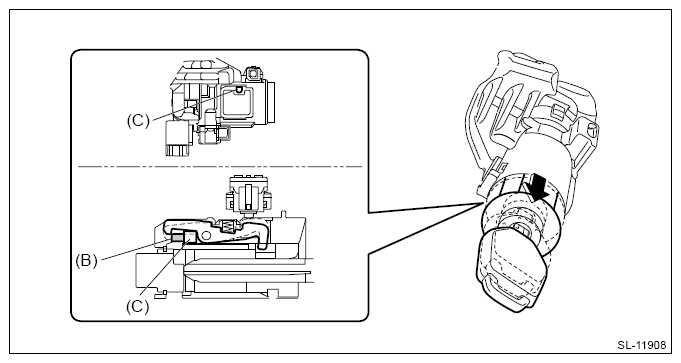

   4. Insert a flat tip screwdriver from the steering lock frame hole (C), and release the claws to pull out the key lock assembly.

   Courtesy of SUBARU OF AMERICA, INC.

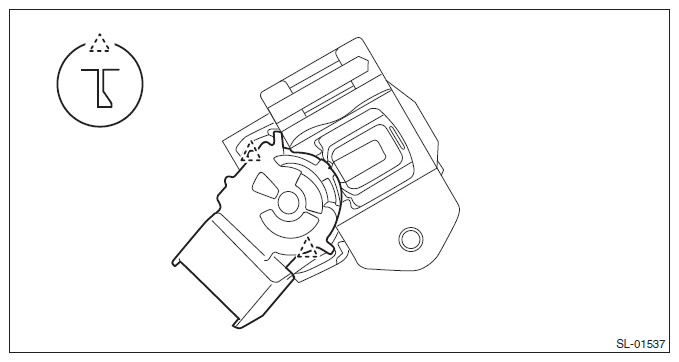

6. Release the claws and remove the ignition switch assembly.

Courtesy of SUBARU OF AMERICA, INC.
