Front Door

  1. Raise the glass assembly front door to the top position.
  2. Remove the cover handle front outer.

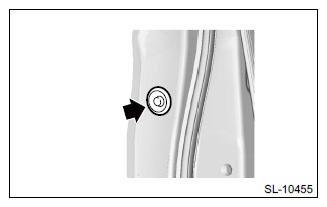

    1. Remove the plug at the rear end of the panel assembly front door.
      G11246295Courtesy of SUBARU OF AMERICA, INC.
    2. Loosen the TORX® bolt and remove the cover handle front outer.

      Preparation tool:

      TORX® T30

    G13226871Courtesy of SUBARU OF AMERICA, INC.
  3. Replace the key cylinder.
    1. Release the claws.

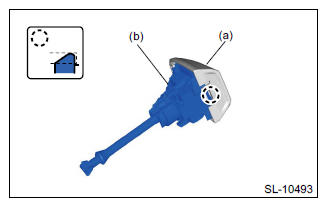

    2. Remove the key cylinder (b) from the cover handle front outer (a), and replace the key cylinder.
    G11246363Courtesy of SUBARU OF AMERICA, INC.
  4. Install the cover handle front outer.
    CAUTION:
    • When installing the cover handle front outer on driver's side, make sure that the key cylinder shaft is correctly inserted into the latch and actuator assembly front.
    • After installation, perform the operation check using the key.

    Preparation tool:

    TORX® T30

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
