Power Rear Gate Auto Closer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the power rear gate auto closer.
    1. Disconnect the connector.

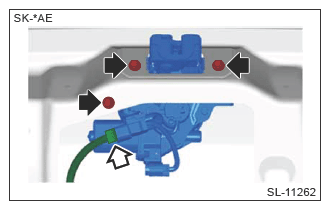

    2. Remove the bolts, and then remove the power rear gate auto closer.
    G13226893Courtesy of SUBARU OF AMERICA, INC.
