Remote Control Back Rest Actuator
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the rear seat backrest. Ref. to SEATS>Rear Seat>REMOVAL .

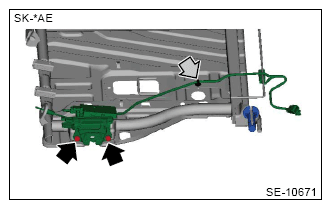

- Remove the lock actuator assembly backrest rear. Ref. to SEATS>Rear Seat>DISASSEMBLY .CAUTION: Pay attention to the burrs on the panel edge.
