Sunroof Switch: Inspection
- Disconnect the harness connector of sunroof switch.

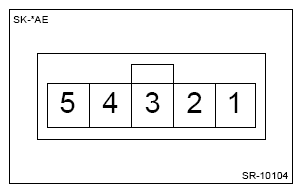

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 1 - 3 OPEN Less than 1 Ω 4 - 3 CLOSE Less than 1 Ω - Replace the sunroof switch if the inspection result is not within the standard value.
