Combination Meter: Removal

CAUTION: When the combination meter assembly is replaced, perform the variant work. Ref. to INSTRUMENTATION/DRIVER INFO>Combination Meter System>OPERATION>VARIANT WORK .
  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the grille assembly CTR ventilation LH. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  5. Remove the visor assembly.
    1. Release the clips and claws of the cover steering UPR.
      G12398836Courtesy of SUBARU OF AMERICA, INC.

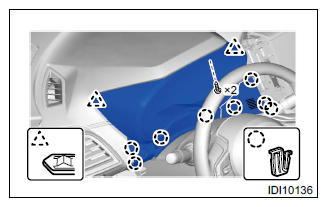

    2. Release the screws, clips and claws.
      G11246164Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector, and remove the visor assembly.
  6. Remove the combination meter assembly.
    CAUTION: Be careful not to damage the meter glass or instrument panel.

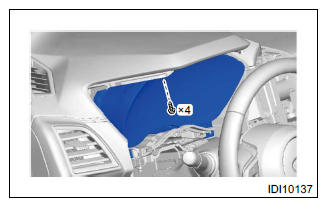

    1. Remove the screws.
      G11246165Courtesy of SUBARU OF AMERICA, INC.
    2. Pull the combination meter assembly toward you and disconnect the connector.
