Leak Check Valve Assembly: Installation

  1. Install the leak check valve assembly bracket.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  2. Connect the drain tube A to the leak check valve assembly, Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
  3. Install the leak check valve assembly.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  4. Connect the connector (E).
  5. Install the circulate tube (D) to the clip (C).
  6. Connect drain tube A (A) and drain tube B (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

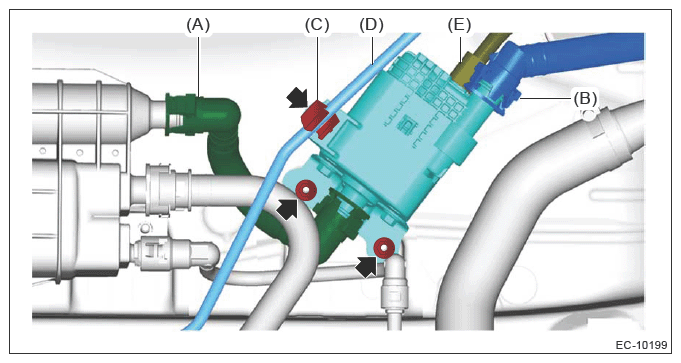

    G13224170Courtesy of SUBARU OF AMERICA, INC.
  7. Lower the vehicle.
  8. Connect the ground terminal to battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
