Radiator Main Fan And Fan Motor: Assembly

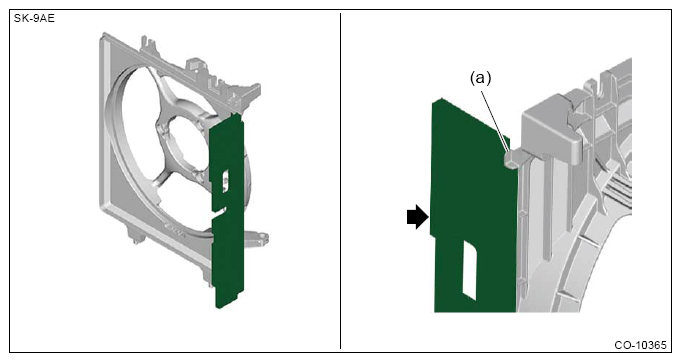

Install the new radiator main fan shroud side gasket to the radiator main fan shroud.
NOTE: Install the radiator main fan shroud side gasket by aligning its cutout portion with the L-shaped rib (a) at the top of the radiator main fan shroud.

Courtesy of SUBARU OF AMERICA, INC.

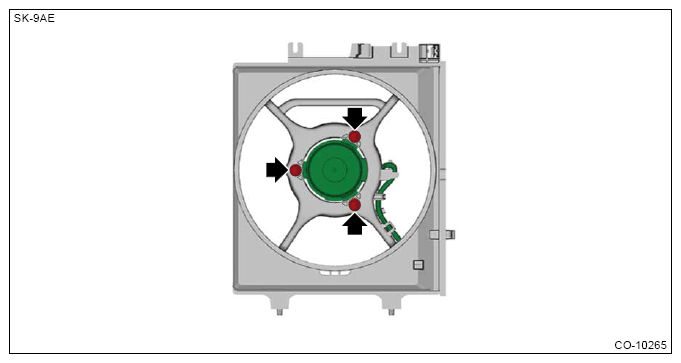

Install the main fan motor to the radiator main fan shroud.
Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

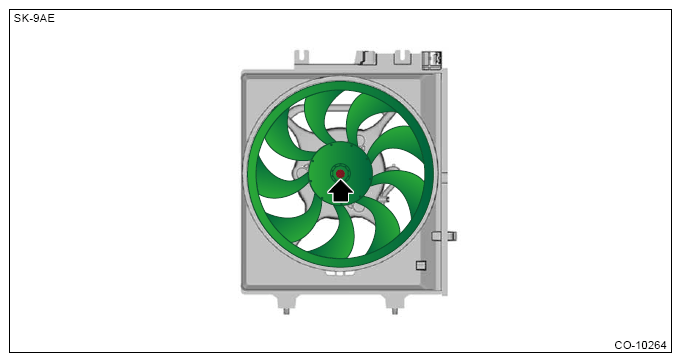

Install the radiator main fan to the main fan motor.
CAUTION: Always use new nuts (with locking agent).

Tightening torque:

3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the main fan motor connector to the radiator main fan shroud.
