Radiator Main Fan And Fan Motor: Disassembly

Disconnect the main fan motor connector from the radiator main fan shroud.
Disconnect the radiator main fan from the main fan motor.
NOTE: Remove locking agent from the thread of the main fan motor.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the main fan motor from the radiator main fan shroud.

Courtesy of SUBARU OF AMERICA, INC.

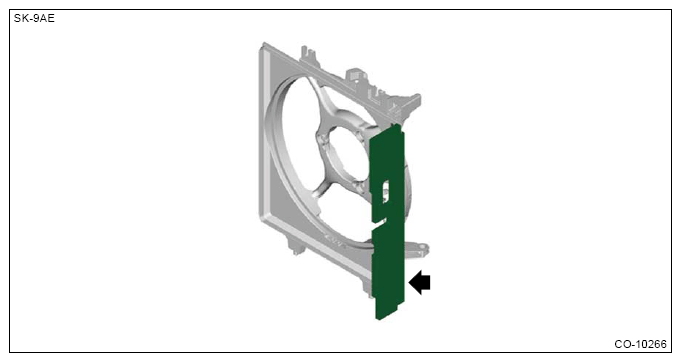

Remove the radiator main fan shroud side gasket from the radiator main fan shroud.
NOTE: This operation is required only when replacing the radiator main fan shroud side gasket.

Courtesy of SUBARU OF AMERICA, INC.
