Radiator Sub Fan And Fan Motor: Disassembly

Disconnect the sub fan motor connector from the radiator sub fan shroud.

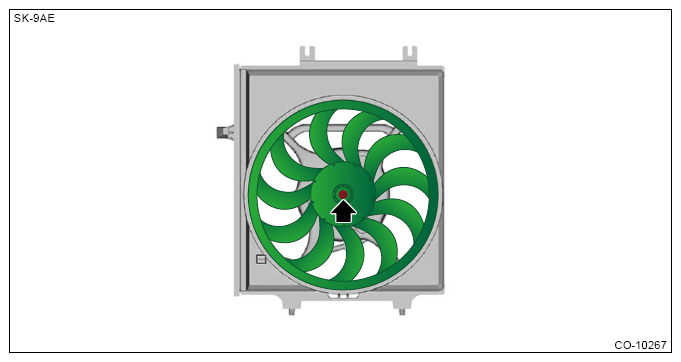

Disconnect the radiator sub fan from the sub fan motor.
NOTE: Remove locking agent from the thread of the sub fan motor.

Courtesy of SUBARU OF AMERICA, INC.

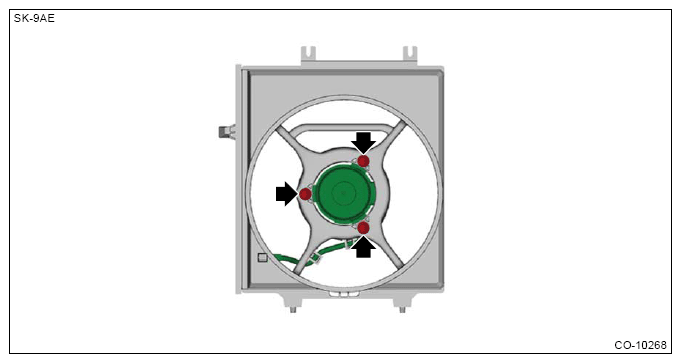

Disconnect the sub fan motor from the radiator sub fan shroud.

Courtesy of SUBARU OF AMERICA, INC.

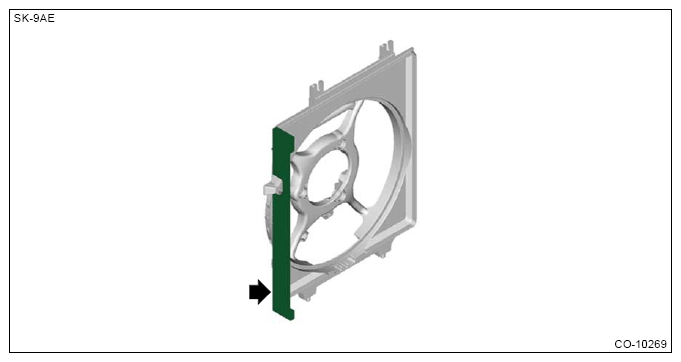

Remove the radiator sub fan shroud side gasket from the radiator sub fan shroud.
NOTE: This operation is required only when replacing the radiator sub fan shroud side gasket.

Courtesy of SUBARU OF AMERICA, INC.
