Radiator Sub Fan And Fan Motor: Installation

Install the radiator sub fan and fan motor to the vehicle.
CAUTION: Confirm that the radiator hose is securely connected.

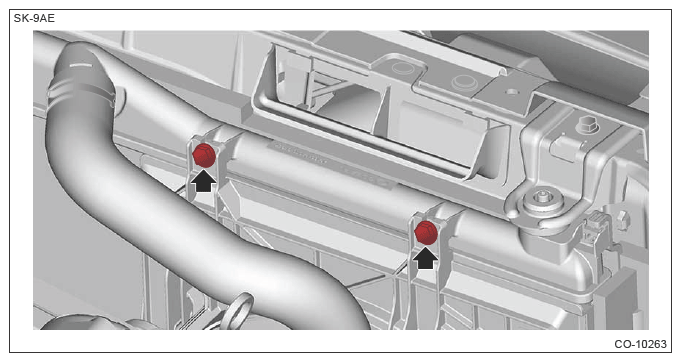

Install the bolts which hold the radiator sub fan shroud onto the radiator.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

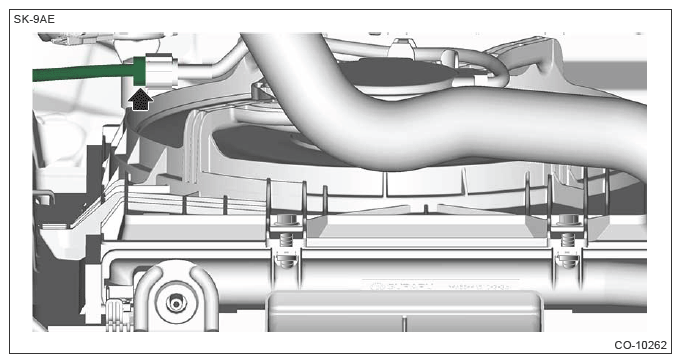

Connect the connector to the sub fan motor assembly.

Courtesy of SUBARU OF AMERICA, INC.
Install the radiator main fan and fan motor. Ref. to COOLING (H4DO)>Radiator Main Fan and Fan Motor>INSTALLATION .
Install the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>INSTALLATION .
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
