Rear Exhaust Pipe: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  1. Separate the front exhaust pipe and rear exhaust pipe.
    CAUTION: Be careful not to let the muffler contact the rear bumper.
    G13224640Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the rear exhaust pipe and muffler.
    CAUTION: Be careful not to drop the rear exhaust pipe.
    G13224644Courtesy of SUBARU OF AMERICA, INC.
  3. Apply a coat of spray type lubricant to the mating area of cushion rubber.

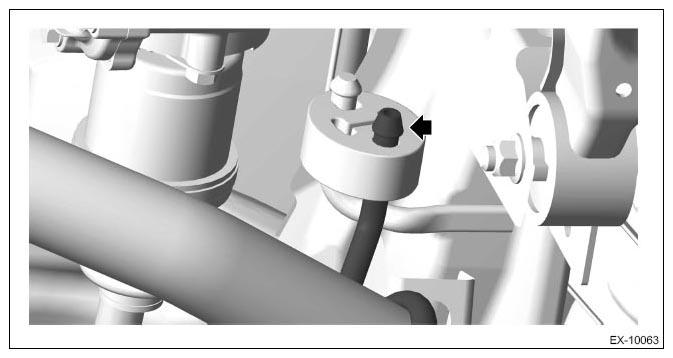

  4. Remove the rear exhaust pipe.
    G11253541Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the center exhaust cover.
    NOTE: Perform this procedure only when required.
    G13224646Courtesy of SUBARU OF AMERICA, INC.
