Tech Tips September 2023 (TIPS0923)

TECH TIPS SEPTEMBER 2023

TECHNICAL INFORMATION TIPS

01 QMR OF THE MONTH

We are pleased to announce this month's TechShare QMR of the Month Winner:

Robert created a high quality QMR using TechShare reporting on customer's concern of rattle noise over bumps.

Robert's report included detailed diagnostic steps and a high-quality video.

Please refer to the following link to review the TechShare QMR in detail:

Please refer to the following link to review the TechShare QMR in detail.

https://subarutechshare.com/qmrs/TS-246289

In appreciation for going the extra mile and sharing his experience with us, Robert will be receiving the following from his District Service Quality Manager:

The other Regional winners selected from QMRs submitted during July 2023 were:

• Benito Cid  from Subaru of Kennesaw
• Juan Pantoja  from Castle Subaru of McHenry
• Saul Hernandez  from Hello Subaru of Temecula
• John Cote  from Johnstons Subaru

Any Subaru Technician can participate in the TechShare QMR of the Month program. See the November 2022 issues of TechTIPS for full details. You just might see your name and photo in a future issue of TechTIPS!

01 QMR OF THE MONTH AWARD PRESENTATIONS

As part of our "enhanced" QMR of the Month recognition program, we will include a photo (whenever available) of the recipient's award presentation in TIPS. The winner selected from QMR of the Month submissions received during September 2023 was Robert Warden, Technician at Saint J Subaru, St Johnsbury, VT.

Robert is shown above (middle) after being presented with his $500.00 Snap-On Gift Card. To Robert's right is Subaru of New England's District Parts and Service Manager John Hayes. To Roberts's left is Subaru of New England's District Quality Service Manager Kevin Enman.

Congratulations and THANK YOU to our September 2023 QMR of the Month Award recipient!

TECH TIPS GREATEST TIPS

This series features TechTIPS articles frequently referred to by Techline. This month's feature is from August 2017.

01 DCM AND ECM SWAPPING

As a reminder, the DCM (Data Communications Module) cannot be swapped between vehicles. If you decide to swap audio units between vehicles, you must leave the DCM with its respective vehicle. If the DCM is swapped between vehicles, this will cause the telematics to become inoperable in both vehicles.

The DCM has a VIN stored internally for the vehicle's telematics subscription. The DCM receives the VIN from the ECM. If you ever need to swap an ECM between vehicles the DCM must be disabled. You can disable the DCM by unplugging it.

01 ASE TRAINING CONFERENCE

Subaru of America sponsored the 2023 ASE Instructor Training Conference. More than 450 automotive instructors from Certified High Schools and Community Colleges across the country met for a week of training in Concord, NC in July.

Seth McVea (Field Service Training Manager at the SOA Dallas Training Center) provided the instructors with 3 hours of new technology training. He presented the "Thermal Management System in the Subaru Solterra".

Seth's dad, Mr. Coleman McVea was in attendance of his son presentations. Mr. McVea was an automotive training instructor for 27 years and was received with applause by current ASE instructors attending the conference.

Automotive training drives the McVea family!

01 LOCK CYLINDER REPLACEMENT

When servicing a vehicle that will require an ignition cylinder replacement, there are a few extra steps to take, as well as options that can make the repair easier. There are a number of reasons why an ignition cylinder would need to be replaced. For example, a faulty part, customer satisfaction after a theft or lost keys. Before starting the repair, there are a few things to understand.

1. The new ignition cylinder will come with a new key cut and is not ordered based on the current VIN key cut.
2. The ignition cylinder can be ordered by itself or as a kit with the other lock cylinders, such as the glove box, doors and trunk lock cylinders.

If the customer would like these components changed due to satisfaction, perhaps after losing all the keys or a theft, then the kit may be a better option. When changing the cylinders to a new key cut a few things need to be done. The new keys will need to be registered to the Immobilizer system as well as updating that new cut information with SOA (see the click path below). This way if the customer would like to add keys in the future, cutting a key by the VIN would produce the correct key cut number to the lock cylinders in the vehicle. Registering the Immobilizer without a known good key on "B" type and later vehicles will require replacing the immobilizer components or sending out the components for clearing by SOA, similar to the "Lost Keys" procedure. See the May 2023 TechTIP  for directions on the "Lost Key" procedure.

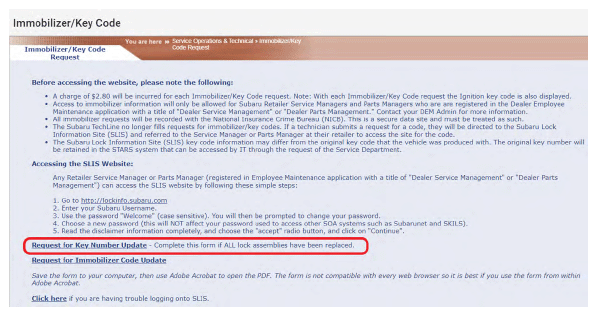

To register the new key cut information with SOA, follow the click path shown below:

If this is the method needed, understand that the 2 keys that come with the new ignition cylinder do not have operational immobilizer chips and cannot be programmed. They are for re-keying purposes and new keys will need to be added for the repair.

If the vehicle requires a new ignition cylinder due to a faulty part, it may be easier to replace just the ignition cylinder with the intention of keeping the same key cut. This will avoid having to update the SLIS key information with SOA and avoid having to change all the locks as well and getting the Immobilizer system registered. This can be done by having the new ignition cylinder re-keyed by a locksmith to the original key cut number. Refer to February 2009 TechTIPS  as well as September 2012 TechTIPS  .

To find a locksmith, see "Associated Locksmiths of America  ."

11 LOW BOOST PRESSURE, WRX STI ONLY

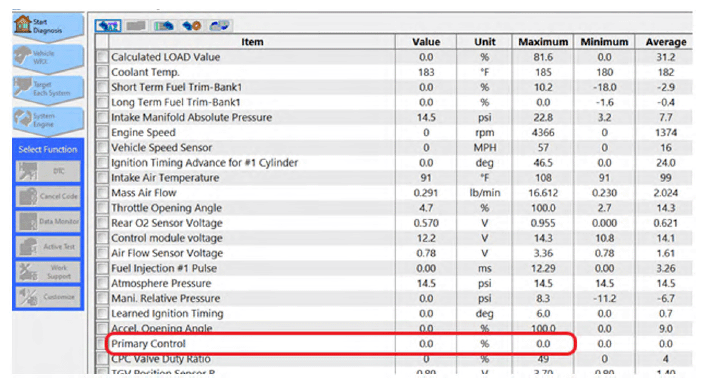

When diagnosing an STI with low boost pressure, there are several places to start. A quick easy place to start is to note what the specific PSI the turbo is producing. If only 10 psi max boost pressure is output, this may indicate no wastegate solenoid operation. 10 psi indicates the turbocharger has defaulted to internal wastegate spring pressure. Drive the vehicle and monitor the wastegate solenoid operation by monitoring ECM data PID "Primary Control." If there is no operation while under heavy load, operation may be cut by the ECM due to the ECM detecting knock, or misfires.

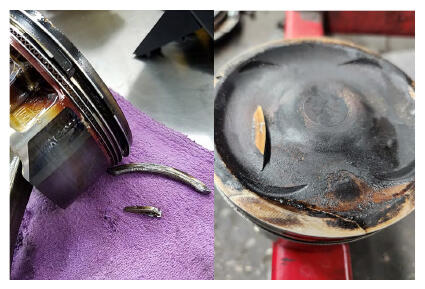

Monitor for knock correction or misfires in the recorded data. Even if no misfires are present, a compression and leak down test should be done to gauge cylinder integrity.

15 EYESIGHT CAMERAS AND WINDSHIELD REPLACEMENT

When servicing windshields on all EyeSight equipped vehicles, ALL removal and installation procedures listed in STIS need to be followed.

Below are removal directions for the windshield:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". AIRBAG SYSTEM>General Description>CAUTION

Always remove the glass windshield after the stereo camera is removed.

Always use the Subaru genuine windshield glass specially designed for EyeSight. (If the windshield glass other than the glass specially designed for EyeSight is used, the visibility of the camera is blocked or the distortion of the glass prevents the correct measurement of the object, resulting in the EyeSight abnormal operation.)

If the windshield glass is installed after removal or replaced, perform the "Inspection" and "Adjustment and check" of the stereo camera.

Inspection:  EyeSight (DIAGNOSTICS)>General Description>INSPECTION

Adjustment and Check:  EyeSight>Stereo Camera Adjustment, Inspection

If the windshield glass is installed after removal or replaced, perform the "Inspection" and "Adjustment and check" of the wide angle mono camera.

Inspection:  WIDE ANGLE MONO CAMERA(DIAGNOSTICS)>General Description>INSPECTION

Adjustment and Check:  EyeSight>Wide Angle Mono Camera Adjustment, Inspection

If the damage is found in the glass repair prohibited area, always replace the glass. Damage, dirt, aftermarket part installation or sticker attachment in the prohibited area can affect the recognition of each camera, and thereby the EyeSight and high beam assist functions may not operate properly. CAUTION > CHECK WINDSHIELD GLASS INCLUDING PROHIBITED AREA

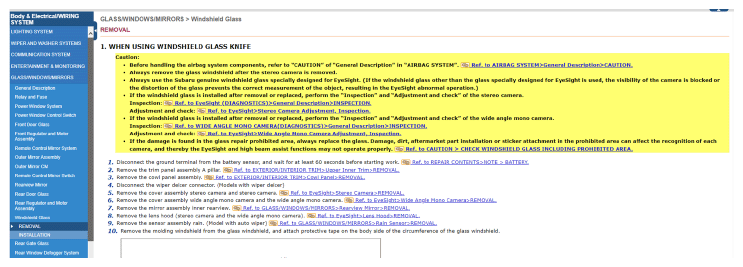

Below is a screenshot of this information found in STIS, it can be found by following this click path on STIS - Body & Electrical/Wiring System>Glass/Window/Mirrors>Windshield Glass>Removal

The reason for removal of the camera(s) prior to removal of the glass is due to the tools that are used to separate the windshield sealant from the vehicle body can come into contact with the Eyesight Stereo or Mono camera at the time of service. If the camera(s) are removed from the area, unintentional contact and damage to the camera body, lenses, etc. is eliminated. With the introduction of the Gen 4 EyeSight System the cameras are secured to the windshield, again the cameras must be removed prior to windshield removal. If the cameras are not removed the tools used to separate the glass seal can come into contact with the camera and cause internal/external damage which may result in calibration failure.

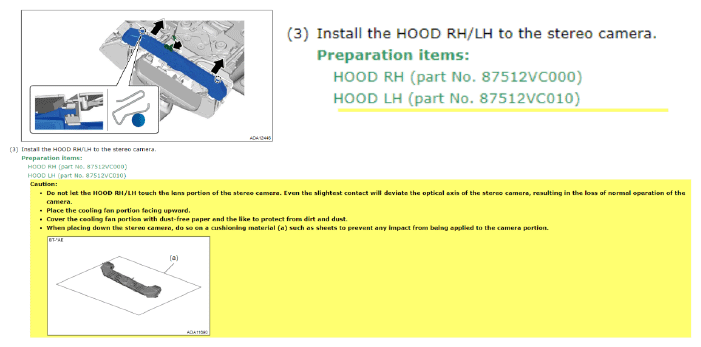

When removing the Gen 4 EyeSight camera the procedure on STIS states to cover the camera lenses to protect them using a "Hood RH/LH". These tools are not mentioned in the "Preparation Tool" section. These tools can be ordered using RPM, they are not listed on the Service Solutions/Bosch tool site.

00 STIS NEW RELEASES

ITEM CODE	ITEM TYPE	TITLE	CREATED DATE
12-248-23R	Technical Service Bulletin	Rattle-Type Sound From B-Pilla...	25-Oct-23
15-130-08R	Technical Service Bulletin	Load Carrying Capacity Reduced...	20-Oct-23
12-252-23	Technical Service Bulletin	Seat Ventilation Blower Unit/...	19-Oct-23
	Service Diagnostics	2024MY Forester Service Manual...	13-Oct-23
	Service Diagnostics	2024MY Ascent Service Manual V...	13-Oct-23
18-224-22R	Technical Service Bulletin	Diagnostics Procedure Addition...	12-Oct-23
18-225-22R	Technical Service Bulletin	Diagnostics Procedure Addition...	12-Oct-23
09-105-23R	Technical Service Bulletin	Reprogramming Files/P0011 &...	12-Oct-23
09-104-23R	Technical Service Bulletin	Reprogramming Files/P0011 &...	12-Oct-23
H4610CC000	Accessory Installation Guide	2022-24MY BRZ - Door Projector...	12-Oct-23
PT94242233	Accessory Installation Guide	2023MY+ Solterra Solterra Rear...	12-Oct-23
PT94242232	Accessory Installation Guide	2023MY+ Solterra - Illuminated...	12-Oct-23
09-99-23R	Technical Service Bulletin	Engine Surging/Jolting During...	12-Oct-23
09-110-23	Technical Service Bulletin	DTC P0420 Diagnostic Procedure	9-Oct-23
EEA-23R	Other/Miscellaneous	2.5 Product Enhancement Reprog...	9-Oct-23
MSA5B2400A	Owner Manual	2024MY Ascent Getting Started...	7-Oct-23
MSA5B2402A	Owner Manual	2024MY Forester Getting Starte...	7-Oct-23
07-213-22R	Technical Service Bulletin	Genuine Battery Replacement	6-Oct-23
07-219-23R	Technical Service Bulletin	Genuine Alternative Battery Re...	6-Oct-23
07-218-23R	Technical Service Bulletin	Genuine Alternative Battery Re...	6-Oct-23
15-236-18R	Technical Service Bulletin	Reprogramming File Availabilit...	2-Oct-23
09-82-23	Technical Service Bulletin	DTC P0452 EVAP System (CPC) Pr...	2-Oct-23
15-314-23	Technical Service Bulletin	Apple CarPlay & Android Auto a...	2-Oct-23
SUTTIPSLOC	Other/Miscellaneous	TechTIPS Article Locator Index...	29-Sep-23
16-136-22R	Technical Service Bulletin	Vibration & Possible Judder Co...	28-Sep-23
12-299-20R	Technical Service Bulletin	6/8-way and Driver's Seat Hing...	28-Sep-23
WRK-23	Subaru Product/Campaign Bulletin	Replacement of DC Charger Inle...	26-Sep-23
WRG-23	Subaru Product/Campaign Bulletin	Reprogramming of the Forward R...	26-Sep-23
02-191-22R	Technical Service Bulletin	New Subaru & Genuine Subaru Al...	19-Sep-23
J1210SJ500	Accessory Installation Guide	STI Door Handle Cup Protector	18-Sep-23
J1210CA500	Accessory Installation Guide	STI Door Handle Cup Protector	18-Sep-23
J1210FL500	Accessory Installation Guide	STI Door Handle Cup Protector	18-Sep-23
J1210VA500	Accessory Installation Guide	STI Door Handle Cup Protector	18-Sep-23
16-140-23R	Technical Service Bulletin	Judder Concern During Low-Spee...	12-Sep-23
12-248-23	Technical Service Bulletin	Rattle-Type Sound From B-Pilla...	12-Sep-23
WRK-21/22R	Subaru Product/Campaign Bulletin	CVT Chain Guide Breakage	12-Sep-23
07-203-23	Technical Service Bulletin	Power Rear Gate Drive Units -...	11-Sep-23
18-231-23	Technical Service Bulletin	Service Manual Correction for...	11-Sep-23
16-90-13R	Technical Service Bulletin	Design Change to Lock-Up Type...	11-Sep-23
H621SXC000	Accessory Installation Guide	2023MY Ascent CD Player Instal...	11-Sep-23
H501SAN000	Accessory Installation Guide	2023MY (Ascent Auto Dimming In...	11-Sep-23
H501SAN000	Accessory Installation Guide	2023MY Legacy Outback Auto Dim...	11-Sep-23

All revised publications are highlighted in yellow.
