Curtain Airbag Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work.

    Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

    NOTE:
    • Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
    • For models with the power seat, move the seat to the front-most position before removing the battery ground terminal.
  3. Remove the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL .
  4. Remove the curtain airbag module.
    CAUTION:
    • Be careful not to damage the curtain airbag module during removal.
    • The curtain airbag module cannot be reused if removed from the vehicle once, even if it has not operated yet.
    • Remove the modules in order starting from the vehicle front.
    1. Disconnect the curtain airbag module connector. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>DRIVER'S AIRBAG MODULE AND CURTAIN AIRBAG MODULE .
      G13226280Courtesy of SUBARU OF AMERICA, INC.

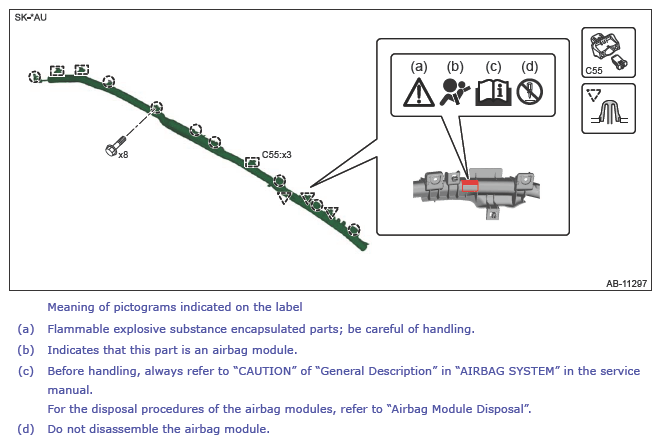

    2. Remove all the bolts and clips, and remove the curtain airbag module.
    G13869841Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the securing clip of curtain airbag module in the following procedures.
    1. Using a pair of nippers, cut off the clip base (a)  .
    2. Remove the clip pin while holding the lock (b) with needle nose pliers  .
    3. Release the locks (c) of the clips bushing at two locations at the top and bottom completely using thin flat head screwdriver (d), and remove the clip bushing  .
    G10276977Courtesy of SUBARU OF AMERICA, INC.
