General Description
›
Components With Torque Specifications
›
Front impact sensor
Front impact sensor
CAUTION:
Do not reuse mounting bolts and nuts.

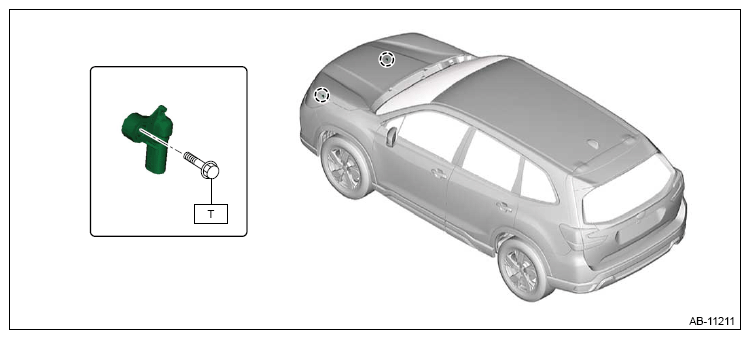

Fig 1: Front Impact Sensor
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: Nm (kgf-m, ft-lb)
T: 13 (1.3, 9.6)
Courtesy of SUBARU OF AMERICA, INC.
