Upper Arm: Removal
- Release the parking brake.
- Using the Subaru Select Monitor, perform the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
- Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Lift up the vehicle, and then remove the rear wheels.
- Remove the rear suspension assembly. Ref. to REAR SUSPENSION>Sub Frame>REMOVAL .

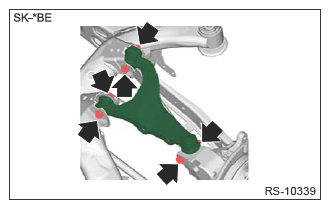

- Remove the arm assembly rear upper.
