Planetary Carrier

NOTE: Disassemble the balance oil guide only.

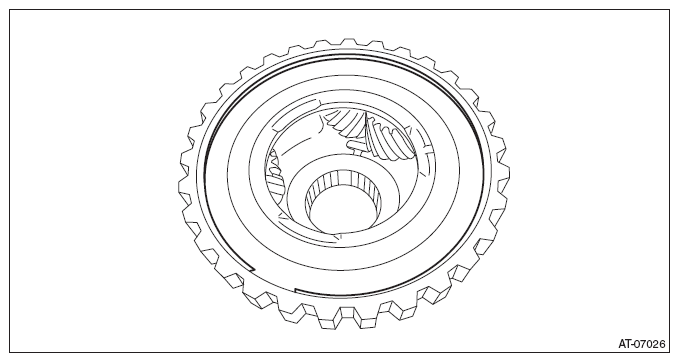

  1. Remove the snap ring.
    G08318067Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the balance oil guide.
